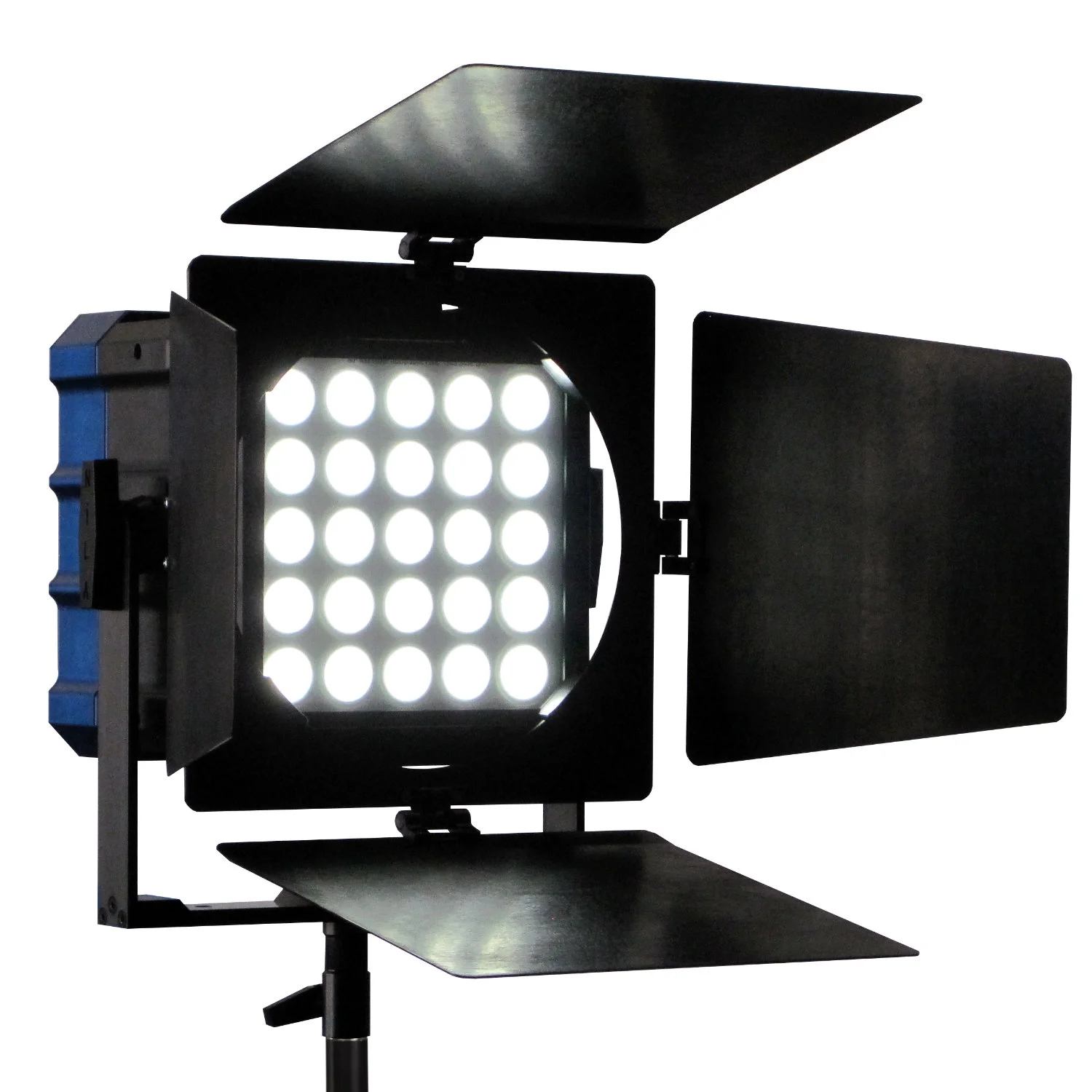

The Boxer gives you the flexibility you need for a full range of lighting applications.  With a power draw of only 200W, flicker-free operation, and powerful output, the Boxer is an indispensable part of any lighting package.



BOXER SPECIFICATIONS

  • input voltage: 90-305V AC, 20-30V DC
  • input current: 1.7A at 115V AC
  • system watts: 200
  • power factor: >.95 @ 115V AC, >.98 @ 277V AC
  • dim range: 0-100% (onboard dimmer)
  • compatible shutter speeds: all (flicker-free at any frame rate at 100% output, and up to 5000 fps when dimmed)
  • light source: single-color, high-brightness LEDs
  • LED rated lifespan: 20,000+ hours
  • color temperature: 5600°K (daylight), 3200°K (tungsten)
  • UV output: none
  • color spectrum: continuous
  • CRI: 86 (5600°K), 92 (3200°K)
  • TLCI: 84 (5600°K), 90 (3200°K)
  • beam angle: 10° to 80°
  • focus method: holographic film lenses
  • control network: DMX512
  • control connections: RJ45 (5-pin XLR adapter optional)
  • built-in Chimera mount
  • weight:  24 lbs. (11 kg)
  • certifications: ETL & CE
  • operating temperature: -22°F to +122°F (-30°C to +50°C)
  • housing construction: aluminum
  • mounting: yoke (w/junior pin and baby receiver)
  • operating position: any
  • cooling: passive (no fans)
  • power cable: 10' locking IEC
  • power connector: NEMA 5-15P (AC), 3-pin XLR (DC)
  • country of origin: USA
  • warranty period: two years
